Lubricating Oil Filter Element

MH: Professional Lubricating Oil Filter Element Supplier

XAC MH MACHINING CO., LTD. , established in 1955, is a leading backbone enterprise within China's aerospace industry. The company has successfully developed China's first aviation gyroscopic instrument, its first missile autopilot system, its first aviation attitude and navigation system, and its first aviation flight director system. OEM ultra-precision machining for Medical, Energy, Space, Defense, Semiconductor, Oil & Gas etc.

Why Choose Us

Advanced Equipment

We are equipped with hundreds of world-leading manufacture and testing equipment from Germany, Switzerland, the United States, and Japan, like six-axis, five-axis, and four-axis CNC machines, sets of Zeiss CMM, high-precision testing benches etc.

ODM/OEM Services

From refractory metal materials to precision functional components and radar system products, we accept ODM/OEM orders. We provide a one-stop service from design to processing to surface treatment.

Quality Certifications

MH is certified by international standards including AS9100, ISO14001, and ISO45001, and possesses a CNAS-accredited laboratory and a comprehensive quality control system.

Global Market

Our products are exported to countries and regions including Europe, the United States, Russia, and Japan. Our products enjoy an excellent reputation among our customers.

Types of Lubricating Oil Filter Element

The Lubricating Oil Filter Element Produced by Our Company Mainly Include the Following Types:

01.

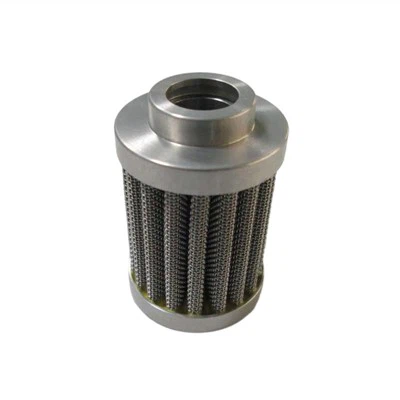

Precision Oil Filter Element for Aviation Lubricants

A precision oil filter element for aviation lubricants is the replaceable, high-efficiency core inside an aircraft’s filtration system.

02.

Oil Filter For Aviation Lubricants

Lubricant oil filters are employed to remove contaminants produced by the engine, preventing recirculation into the system.

03.

HP-8B Oil Filter Element for Precision Filtration

MH HP-8B oil filter element is designed for high-efficiency filtration in lubrication systems. The external-to-internal flow design maximizes filtration efficiency and performance.

04.

380μm Lubricating Oil Filter Element

MH 380μm lubricating oil filter element is designed for high-performance filtration in industrial and automotive lubrication systems.

Key Parameters

Working Medium	4050, 4106, 4010 Lubricants
Operating Temperature	-55℃ to +145℃
Operating Pressure	(450 ± 50) kPa
Flow Resistance	≤ 20 kPa at (25 ± 0.5) L/min and oil temperature of (25 ± 5) ℃
Filtration Precision	25 μm
Weight	≤ 200 g
Flow Direction	External to internal

Lubricating Oil Filter Element Materials

Lubricating oil filter element is made of pleated glass fiber, paper, SS304, SS316, metal mesh type. These materials are designed to withstand high temperatures and pressure, ensuring clean oil flows to protect the engine or machinery.

Advantages of Lubricating Oil Filter Element

Contaminant Removal: Filter elements are designed with a media that captures and contains these contaminants, preventing them from circulating throughout the system and causing damage.

Prevents Wear: Contaminants in lubricating oils can cause increased friction and wear between moving parts. By removing these particles, filter elements help prevent premature equipment wear, reducing the risk of damage and extending the life of the machine.

Maintain oil quality:

Filter elements help maintain oil quality by removing harmful substances that can accelerate oil degradation. This ensures that the oil can continue to provide proper lubrication and cooling to the equipment, increasing its performance and efficiency.

Prevents system failures:

Filter elements play a vital role in preventing these problems by keeping the oil clean and free of particles that could prevent equipment from functioning properly.

Cost Savings:

Filters help keep lubricating oil clean, reducing the need for frequent oil changes and minimizing the risk of costly repairs or equipment downtime due to contaminated oil.

Application of Lubricating Oil Filter Element

Aerospace:

Ensuring high-performance lubrication systems remain free from particulate matter and impurities.

Automotive:

Applied in engines and transmissions to remove contaminants and extend vehicle service life.

Industrial Machinery:

Filtering hydraulic and lubricating oils in heavy machinery to ensure smooth operation and reduce wear.

Marine Industry:

Protecting marine engines and onboard machinery from fluid contamination in harsh marine environments.

Lubricating Oil Filter Element Production Process

Selection of Filtration Media
Experienced and qualified personnel select the appropriate filtration media from stock based on specific order requirements, primarily utilizing media with a micron rating ranging from 3 µm to 250 µm.

Cutting of Filtration Media
The filtration media is machine-cut to the required dimensions with high precision. The equipment is capable of processing filter materials in a wide variety of specifications.

Pleating
The filter material undergoes a pleating process to maximize the filtration surface area, thereby ensuring optimal filtration efficiency.

Assembly

The pleated filter material is wrapped around and fitted onto a central metal or plastic core, which provides structural support.

Encapsulation

If required, an additional protective layer or mesh is applied to the outer surface of the filter element to enhance its durability.

Drying

Adhesives are cured and the filter elements are dried within a controlled environment to ensure their structural strength and stability.

Quality Control

Quality control takes place at several points throughout the entire production and assembly process.

Customization Process

Communicate Needs

You can contact us via email at info@xacmfg.com to share your specific requirements, such as filtration grade, dimensions, or materials. This allows us to prepare an accurate quotation tailored to your needs.

Develop Solutions

Based on your requirements, we will create a customized solution and provide detailed design drawings along with a clear implementation plan.

Contract Confirmation

We will review the design plans and contract details together to ensure mutual understanding and agreement. This step guarantees clarity for both parties.

Manufacturing & Delivery

Once confirmed, we begin manufacturing and closely monitor progress to ensure timely production and delivery. This helps us maintain efficiency and meet deadlines.

Final Acceptance

We conduct a final acceptance inspection with you to confirm that the delivered products meet your quality standards and all technical specifications.

Ongoing Support

After delivery, we provide maintenance and technical support to ensure long-term reliability. This ensures your products consistently perform at their best.

Shipping and Delivery

productcate-1-1

Our Certifications

Our manufacturing and quality systems meet strict aerospace standards

FAQ

Q: Can you print my company logo and package?How long does it take to produce?

A: Yes, of course we can print your company loge and package, you just show your logo to me, and then we will do it for you.
Normally, we produce it need 4-6 working days.

Q: How long is the service life of the filter element?

A: According to the working conditions. In good working conditions, the service life of the filter element will be long, and the bad working conditions will reduce the life of the filter element. Our customers have feedback that some filter cartridges can be used t about one year, and even more.

Q: Do you supply CO and CQ ?

A: Certainly. All of these documents are available. If you require them, we can handle the necessary procedures and issue these certificates for you.

Q: Can you checking shipping cost for us?

A: Yes! We have long cooperated forwarder. He can check competitive shipping cost and arrange delivery for us. By the way, he is responsible for our goods. You can be relax and dont worry.

Q: Can you help us delivery if we have TNT account?

A: Yes. TNT account will be good. Subsequently, you may place an order with TNT, and we can transport the goods to the TNT facility on your behalf. Our many customers delivery goods by this way.

Q: Could you produce according to the samples?

A: Yes, we can produce by samples or drawing as your request. We can open new molds, but need you to bear the extra cost on new molds, when you place a bulk order. The mold fee can return back.

As one of the most professional lubricating oil filter element manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to wholesale high quality lubricating oil filter element made in China here from our factory.
