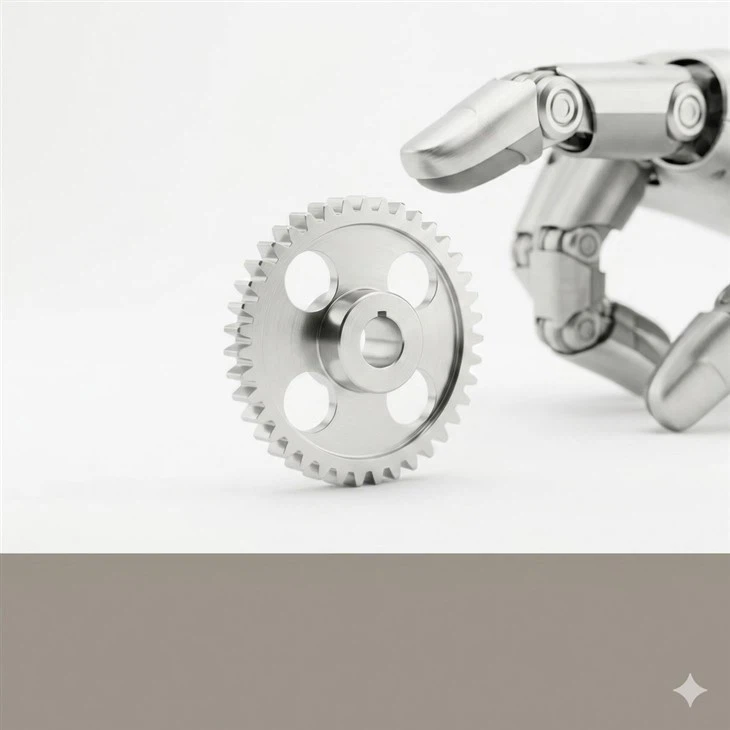

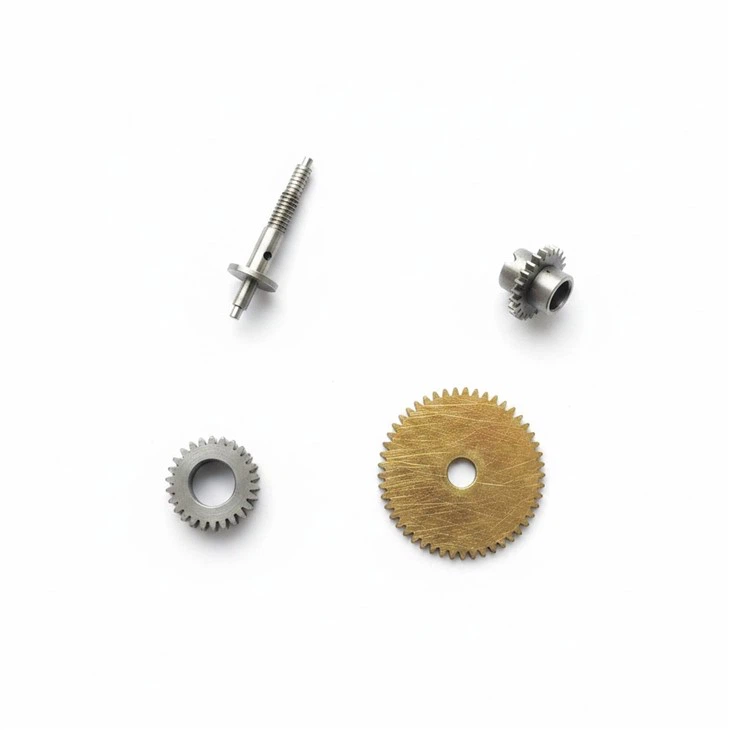

DIN6 Robot Finger Gear Shaft | M0.5 Hardened Micro Gear for Humanoid Hands

Custom DIN6 robot finger gear shaft with M0.5, 18 teeth, nitrided surface hardness HV750–920 and aerospace-grade manufacturing control for humanoid robot hand actuators.

Product Overview

This DIN6 Robot Finger Gear Shaft is designed for compact humanoid robot hand mechanisms where small size, stable torque transfer and long-cycle reliability are critical. In dexterous robot hands, gears are exposed to repeated gripping, direction changes and side-load conditions. Ordinary micro gears may suffer from tooth wear, backlash growth or fatigue failure.

This gear shaft is manufactured based on a precision drawing with M0.5 module, 18 teeth, 20° pressure angle and 6-h accuracy grade according to GB2363-90. The nitrided tooth surface improves wear resistance, while the tempered core supports dimensional stability and fatigue strength.

Key Specifications

Item	Specification
Gear Type	Micro Spur Gear Shaft
Module	M0.5
Teeth Number	18
Pressure Angle	20°
Helix Angle	0°
Full Tooth Height	1.125 mm
Accuracy Grade	6-h, GB2363-90
Surface Hardness	HV750–920
Nitriding Depth	0.05–0.12 mm
Core Hardness	HRC28–32
Thread	M4 × 0.5-6g
Production Mode	Custom manufacturing by drawing

Selling Points

DIN6-level precision for humanoid robot hand transmission
Nitrided surface hardness HV750–920 for improved wear resistance
M0.5 small-module design for compact finger actuator systems
Suitable for high-cycle gripping and repeated micro-motion
Aerospace-origin manufacturing background for reliability-focused customers
CNAS laboratory support for material and quality verification
AS9100 quality system suitable for high-end robotics supply chains

FAQ

Q1: Why is DIN6 accuracy important for robot finger gears?
DIN6 accuracy helps improve tooth meshing consistency, reduce motion fluctuation and support more repeatable finger movement.

Q2: Is this gear suitable for high-cycle robot hand operation?
Yes. The nitrided surface and tempered core are suitable for applications requiring repeated motion and improved wear resistance.

Q3: Can this gear shaft reduce backlash?
Gear accuracy, tooth consistency and mating gear design can help control backlash. Final backlash depends on the complete actuator assembly.

Q4: Can you manufacture this gear based on customer drawings?
Yes. MH supports custom micro gear manufacturing based on 2D drawings, 3D models or samples.

Q5: What information is needed for quotation?
Please provide drawing, material, heat treatment requirement, DIN grade, quantity, mating gear data and application background.
