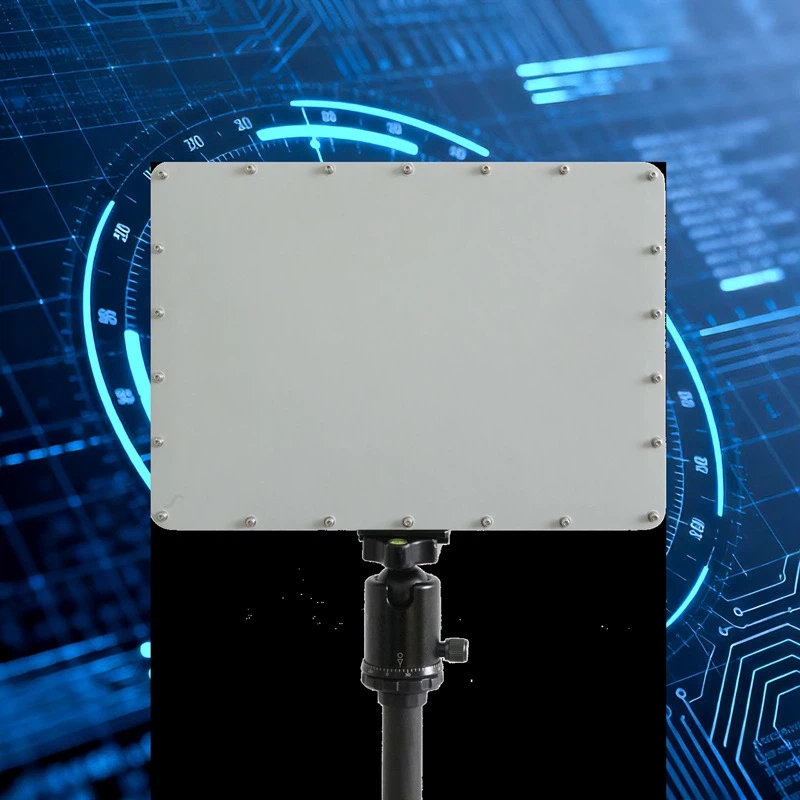

10km AESA Radar BWR-G03

Low Altitude Radar
Ku-band
1D AESA
Detection range ≥10km
Azimuth coverage: 90° (sector-type coverage)
Elevation coverage: 7°
Simultaneous Tracking ≥100 targets
Velocity measurement range: 0.4–60 m/s
(Supports detection of stationary water surfaces)
Applications: Border patrol,Port nearshore monitoring etc.

Product Introduction

Low altitude UAV Detection Radar Expert

Over 30years military radar R&D and manufacturing experience
MH Successfully R&D and manufactured:

BWR-G Series: 1D AESA technology, tracking of pedestrians, vehicles, and small to medium-sized vessels, 0.25s(1Hz), azimuth 90° ~ 360°.

BWR-T Series: mechanical+ DBF 3D detection, air-ground-water monitoring, detection 3.5km ~ 20km, max altitude 3km.

BWR-A15: 2D AESA, capable of simultaneously tracking ≥500 targets, max altitude of 2KM.

BWR-G03 Description

Specification

spec111

2026030320282727756

Applications

Perimeter groundintrusion security:

small oil wells
rural border posts
small reservoirs
accurately identifying pedestrians (RCS=0.5㎡, detection range ≥3km), small vehicles, and small boats on water.

Surrounding Industrial Parks:

small/medium-sized factories
logistics parks
"radar + optoelectronic" to reduce false alarm rates.

Small fishing ports and rural riverbanks:

Monitor surface vessels (e.g., fishing boats, dredgers)
to prevent illegal fishing and sand dredging;
adaptable to humid and high-salt-fog environments.

Typical Application Case: Border Directional Patrol Monitoring System

Application Background

A land border area requires focused monitoring of specific passageways. The system must be lightweight, vehicle-mountable, and capable of real-time detection of illegal border crossers and suspicious vehicles.

Deployment Method

The BWR-G03 is mounted on the roof of a patrol vehicle or a fixed monitoring tower, continuously scanning a 90° sector in the key direction. It connects to the command system via TCP/IP and is linked to video surveillance.

Results Achieved

Pedestrian detection distance ≥3 km
Vehicle detection distance ≥6 km
≥100 targets tracked simultaneously
Refresh rate ≤0.25s for real-time updates
Low power consumption compatible with vehicle-mounted power systems
Stable operation in environments from -40℃ to +55℃

The system achieves continuous situational awareness in key directions, improving border patrol efficiency and response speed.
