Aircraft Water Filter Systems & Filter Elements | Aviation-Grade Filtration Solutions
High Efficiency Water Filtration for Aircraft Systems | 3μm–150μm Precision | Up to 6.5MPa Pressure Resistance
MH aircraft water filter systems and filter elements are engineered for high-reliability fluid filtration in aerospace environments. Designed to operate under extreme temperature variations and pressure conditions, these filters ensure consistent water purity and system protection in aircraft and mission-critical applications.
The product range includes compact inline filters, high-flow filtration units, and precision filter elements with filtration ratings from 3μm to 150μm. Built with aerospace-grade materials and strict quality control, these systems are ideal for potable water systems, onboard filtration, and industrial high-reliability environments.

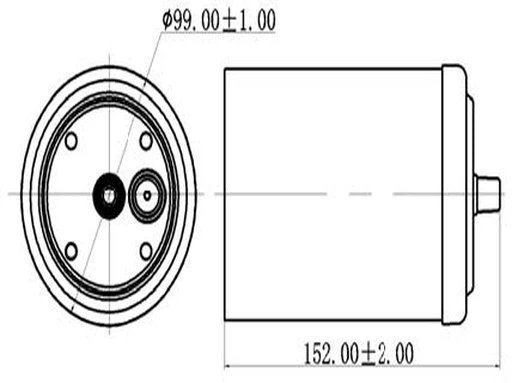

150G-PD
1. Working medium: Aircraft drinking water
2. Operating temperature: -20℃～+55℃
3. Operating pressure: 35psi
4. Filtration accuracy: 5μm
5. Flow resistance: ≤20psi at 3.79L/min
6. Weight: ≤530g
7. Includes residual chlorine removal function

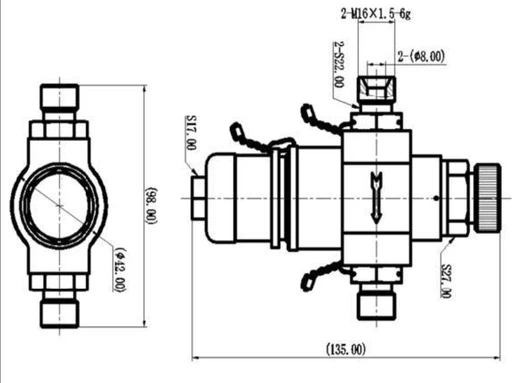

GLQ25-1
1. Working medium: Water
2. Working pressure: 6.5 MPa
3. Rated flow rate: 70 ml/s
4. Filtration accuracy: 5 μm
5. Contamination indicator signaling pressure: (0.7 ± 0.05) MPa

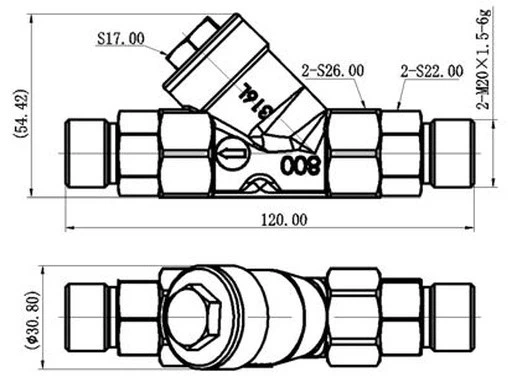

GLQ1100-1
1. Working medium: Water
2. Working temperature: 0℃～+70℃
3. Working pressure: 0.6MPa
4. Filtration accuracy: 100μm
5. Weight: ≤0.5kg
Product Range & Specifications
1. Aircraft Water Filter Unit (150G-PD)Medium: Aircraft potable water Temperature: -20°C ~ +55°C Pressure: 35 psi Flow Rate: 3.79 L/min Filtration Accuracy: 5 μm Weight: ≥530 g Feature: Odor and chlorine removal |
2. High Flow Aircraft Water Filter (SLX1.4-1)Medium: Aircraft potable water Temperature: -20°C ~ +55°C Pressure: 35 psi Flow Rate: 4 L/min Filtration Efficiency: ≥85% @ ≥0.4 μm Flow Resistance: ≤25 psi Weight: ≥440 g Feature: Advanced contaminant removal |
3. Inline Water Filter (GL01100-1)Medium: Water Temperature: 0°C ~ +70°C Pressure: 0.6 MPa Filtration: 100 μm Weight: <0.5 kg |
4. Compact Water Filter (GL01150-1)Medium: Water Temperature: -20°C ~ +80°C Pressure: 3 MPa Filtration: 150 μm |
5. High Pressure Pipeline Filter (GL025-1)Medium: Water Pressure: 6.5 MPa Flow Rate: 70 mL/s Filtration: 5 μm Feature: Differential pressure indication (0.7±0.05 MPa) |
6. Precision Water Filter (SL13-1)Medium: Water Pressure: 862 kPa Filtration: 3 μm Flow Rate: 3.63 L/min Pressure Drop: ≤55 kPa Weight: >800 g |
Water Filter Element

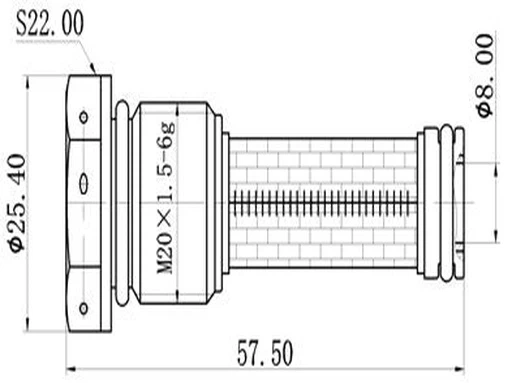

LX320-1
1. Nominal diameter: 8mm
2. Working medium: Liquid carbon dioxide
3. Working temperature: -40℃～+100℃
4. Working pressure: (10～15)MPa
5. Maximum flow rate: 15L/min
6. Filtration accuracy: 20μm

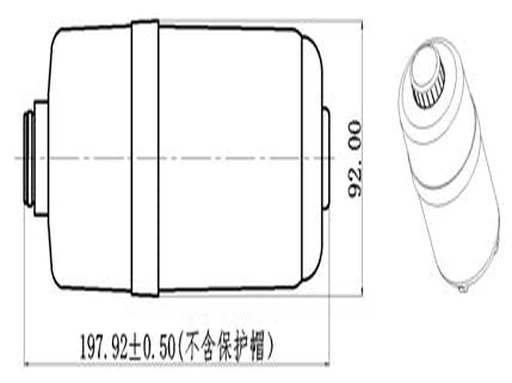

SL13-1
1. Working medium: Water
2. Working pressure: 862 kPa
3. Filtration accuracy: 3 μm
4. Flow resistance: At a flow rate of 3.637 L/min, the flow resistance is ≤55 kPa
5. Weight: ≤800 g
SLX14-1
1. Working medium: Aircraft drinking water
2. Operating temperature: -20℃～+55℃
3. Operating pressure: 35psi
4. Filtration accuracy: 4μm
5. Filtration efficiency: Reduction of particles larger than 0.4μm by at least 85%
6. Flow resistance: Flow resistance ≤ 25psi at 3.79L/min
7. Includes residual chlorine removal function
8. Weight: ≤ 440g
Quality Assurance
Quality Assurance
CNAS-accredited laboratory testing
Material verification & incoming inspection
Pressure, flow, and filtration validation
Aerospace-level quality control system
Key Features of Aviation Water Filters
Precision Filtration for Every Application
Drinking Water Safety: Models like 150G-PD and 778000-PD feature 4–5μm filtration with chlorine removal capabilities, eliminating contaminants, particulates, and residual chlorine to meet potable water standards.
High-Pressure System Protection: GL025-1, LX320-1, and GL01150-1 handle pressures up to 15 MPa, protecting liquid cooling and special fluid systems from wear and clogging.
Contamination Indication: GL025-1 includes a differential pressure indicator (0.7±0.05 MPa) to alert crews to filter clogging before performance is affected.
Robust Design for Extreme Aviation Environments
Wide Temperature Tolerance: Operating ranges from -60°C to +120°C (varies by model) ensure reliable performance in unpressurized and temperature-variable aircraft zones.
Lightweight Construction: All models are optimized for minimal weight (as low as 0.44kg for 778000-PD) to meet aircraft weight-reduction goals without sacrificing strength.
Corrosion-Resistant Materials: Stainless steel and aviation-grade aluminum housings resist corrosion from water, moisture, and de-icing fluids, extending service life.
Easy Installation & Maintenance
Standardized Interfaces: Threaded connections (M16×1.5, M20×1.5, 3/8-18NPT) and quick-connect fittings simplify installation in existing aircraft plumbing.
Replaceable Cartridges: Cartridge-style designs (LX320-1, LX340-1, 778000-PD) allow quick filter element replacement without removing the full assembly, reducing maintenance downtime.
Compact Footprint: Low-profile designs fit within limited aircraft plumbing spaces, including the 26mm-long GL01150-1 and the compact SL13-1 filter.
Full Compliance & Customization
Aviation-Grade Quality: All products are manufactured to meet industry standards, with rigorous testing for pressure, flow, and temperature performance.
Custom Solutions: We offer customization for filtration precision (3–150μm), working pressure, interface size, and housing material to match your aircraft's specific requirements.
Applications of Aircraft Water Filters
Aircraft Drinking Water Systems: 150G-PD and 778000-PD filters ensure safe, clean potable water for crew and passengers on commercial and private aircraft.
Liquid Cooling Circuits: GL025-1 filters protect avionics and electronic equipment cooling systems from particulate contamination at high pressures.
Special Fluid Handling: LX320-1 cartridges handle liquid CO₂ and other special fluids in environmental control systems.
General Aviation & Ground Support: SL13-1, GL01100-1, and GL01150-1 serve light aircraft, helicopters, and ground-based aviation water systems.
Replacement Parts: LX340-1 and 778000-PD cartridges provide direct-fit replacements for OEM filter assemblies, reducing maintenance costs.
Why Choose MH Aerospace Water Filtration Solutions
MH provide aerospace-grade filtration solutions backed by strong manufacturing capabilities:
Aerospace-level manufacturing experience
Strict quality control system
Custom engineering support
Reliable performance in mission-critical environments
Custom Aircraft Water Filter Solutions
MH offer customized aircraft water filtration systems tailored to your application requirements, including:
Custom housing design
Filter element optimization
Material selection for aerospace use
System integration support
Aerospace Manufacturing Background
Founded in 1955, XAC MH MACHINING CO., LTD is a leading backbone enterprise in China's aerospace industry.
MH has successfully developed:
China's first aviation gyroscope instrument
The first missile autopilot system
The first aviation attitude and navigation system
The first aviation flight guidance system
In today's C919 national key project, the company serves as a core ODM supplier for precision sensors, temperature probe assemblies, and wing telescopic cable devices.
✔ 70 years aerospace manufacturing heritage
✔ Precision machining capability up to micron level
✔ Aerospace-grade verification and testing standards
✔ ODM/OEM development capability
✔ >20years export experience to Europe and North America
✔ Serving aerospace, defense, energy and high-end industrial sectors
Customers Worldwide
MH has 70 years aviation valve design and manufacture experience for Chinese customers in aviation and aerospace, we also have cooperated some world leading customers for more than 20 years:

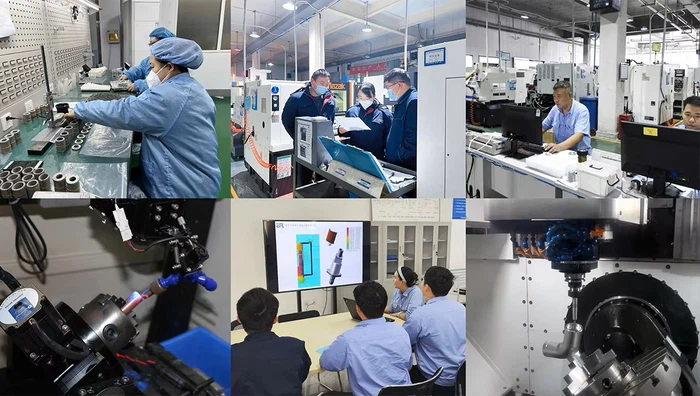

Smart manufacturing
|
|
|
FAQ - Aviation Water Filters & Cartridges
Q: What's the difference between a complete filter assembly and a replacement cartridge?
A: A filter assembly (like GL025-1 or SL13-1) includes the housing, filter element, and connections for direct installation. A cartridge (like LX320-1 or 778000-PD) is just the replaceable filter element, designed to fit into existing filter housings.
Q: How do I choose the right filtration precision?
A: Filtration precision depends on your application:
Drinking water: 4–5μm with chlorine removal (150G-PD, 778000-PD)
Liquid cooling systems: 3–10μm (SL13-1, GL025-1)
Low-pressure water circuits: 100–150μm (GL01100-1, GL01150-1)
Q: Are your aviation water filters compatible with Boeing/Airbus aircraft?
A: Our filters are designed with standard aviation plumbing connections (NPT, metric threads) and can be customized to match specific aircraft system requirements, including common commercial and general aviation models.
Need Custom Aviation Fuel Filters?
Send us your drawing, working medium, pressure, flow rate, filtration accuracy and interface requirements. Our engineering team will review your application and provide a suitable filtration solution.
