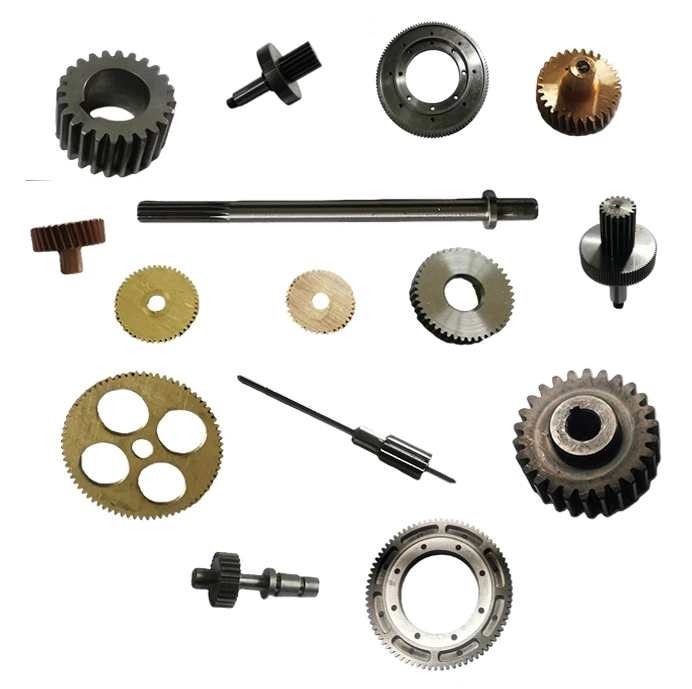

Small Module Gear

MH has more than 50 years custom Micro Gears design and manufacture experience.
Module: 0.1~1
Precision: JIS 1-2, DIN 5-6, AGMA 13-12
Materials: Ti-6Al-4V, Ti-6Al-4V ELI, S20C, S45C, SCM415, SCM430, SCM440, SNCM420, C5191, PBC2, 15CrMo, 4118, 30CrMo, 4130, 42CrMo, 4140, 20CrNiMo, 8620
Our micro gears are designed for low noise, high stability, and long service life, even in compact and sensitive mechanical systems.

Products Description

MH's small module gears offer long-term stability and consistent batch production, suitable for transmission solutions in high-precision systems.

Custom-Tailored Precision---We manufacture custom-made products based on customer design drawings to meet highly personalized needs.

What are small module gears?

Small module gears = precision gears with a module m ≤ 0.5 (or even m ≤ 0.3).

Characteristics:

Extremely small tooth dimensions and close tooth pitch

Accumulated errors are easily amplified

Extremely sensitive to surface roughness

High difficulty in controlling transmission noise and vibration

Widely used in:

Aerospace actuators

Inertial navigation systems (INS)

Radar scanning and positioning systems

Precision optoelectronic and measuring equipment

MH small module gears Features

Raw material control abilities.

Gear grinding capability:DIN 5

Surface quality Ra ≤ 0.4

Batch consistency capability

Why Choose MH small module gears

Lorem ipsum dolor, sit amet consectetur adipisicing elit.

know deep of small module gears

Tooth profile is highly susceptible to distortion

Cumulative error control is difficult

Surface quality directly determines lifespan

Batch consistency is hard to reach

Material advantage

Titanium, nickel-based... aerospace materials are self-supplied;

non-self-produced materials are strictly controlled;

so, material supply is stable and controllable.

product-800-455

mazak

world leading equipment

Hobbing/shaping: Gleason-Pfauter P90/P125, Liebherr LS 80

High-precision grinding (DIN 5): Reishauer RZ 260, Liebherr LGG 180

Precision turning and milling: Mazak QTN, DMG MORI CMX

Surface finishing and critical face grinding: Okamoto ACC

ZEISS CMM: ZEISS CONTURA

Lean Manufacturing and Quality Control

Every production stage is precisely planned to prevent the accumulation of any errors during production.

The precision and performance of each batch of miniature gears are completely consistent, ensuring the long-term stable operation of each product.

equipment KANBAN

Technical Consulting and Customization

We welcome you to provide drawings or key parameters (module m, number of teeth Z, outer diameter, thickness, material, heat treatment requirements). We can assist in optimizing the structure and manufacturing plan to achieve the best balance between performance and cost.
