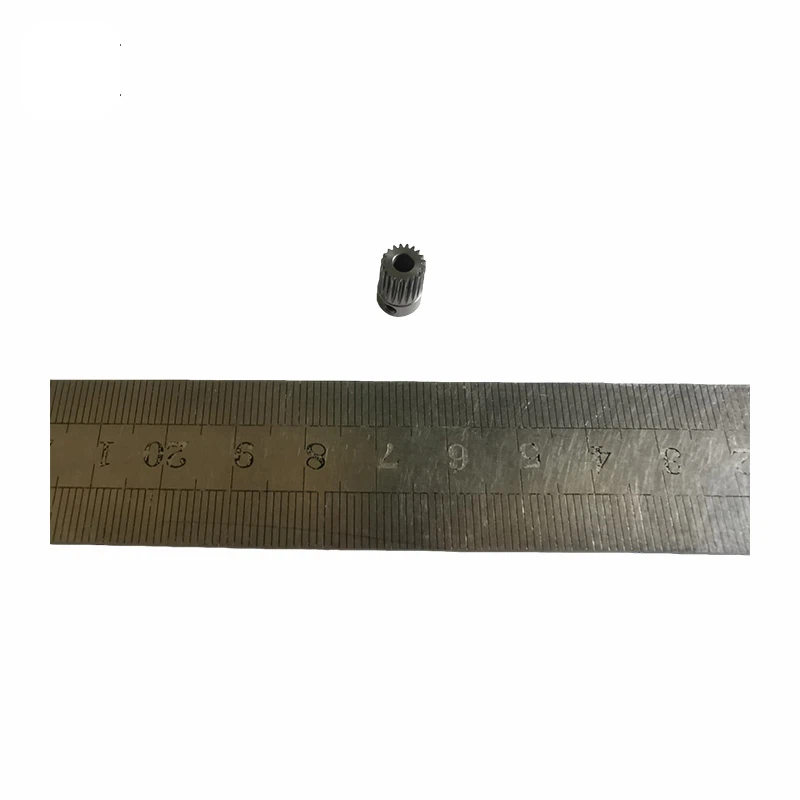

0.2m Micro Spur Pinion Gear

Outer diameter: ~Ø8mm
Length: ~10mm
Bore diameter: ~Ø2mm
Module:m0.3
Number of teeth: 14
Precision: JIS 1-2, DIN 5-6, AGMA 13-12
Materials: Ti-6Al-4V, Ti-6Al-4V ELI, Inconel 718, 20CrMnTi, 18CrNiMo7-6 / 9310, 17-4PH, 440C, S20C, S45C, SCM415, SCM430, SCM440, SNCM420, C5191, PBC2, 15CrMo, 4118, 30CrMo, 4130, 42CrMo, 4140, 20CrNiMo, 8620
Applications:compact mechanical systems request low noise, high stability, long service life.

Products Description

Micro Spur Pinion – Ultra Small Module Gear

MH manufacture custom small-module micro gears.

This product is an ultra-small module miniature spur gear, OD Ø8mm and L10mm, belonging to the typical miniature precision transmission component.

Achieving stable, low-noise, and low-backlash transmission within a small space.

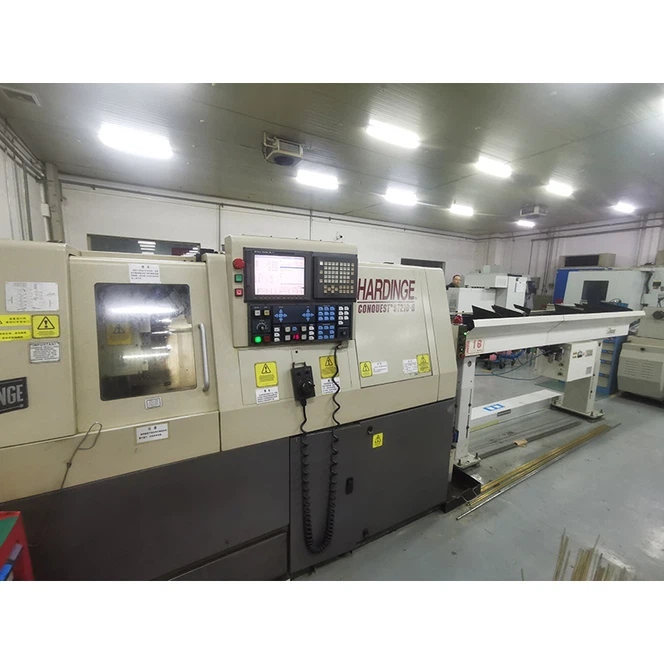

Hardinge1

Product Features

Ultra-small module design: m0.3, with extremely small tooth profile, requiring extremely high machining precision.
High-precision tooth profile control: DIN 6 (gear hobbing), DIN 5 (gear grinding).
High coaxiality of shaft-hole, the hole diameter is Ø2mm. The coaxiality between the tooth profile and the hole directly determines the system's operational stability.
The tooth surface Ra ≤ 0.4, making it suitable for low-noise systems.

Key Technical Challenges

The extremely fine tooth profile demands exceptionally high machining stability.

Clamping is difficult, and micro-deformation is easily introduced.

Tooth profile accuracy and hole concentricity must be controlled simultaneously.

MH Custom Micro Spur Pinion Gear Applications

Aircraft-borne actuators

Inertial navigation miniature transmission mechanisms

Radar positioning systems

Precision optoelectronic equipment

Miniature servo drive systems

Why Choose MH Micro Spur Pinion Gear

Specializing in custom micro/small module precision gears.

Proficient in machining and controlling extremely small, high-precision gears.

Able to balance precision, lifespan, and cost according to application requirements.

Suitable for high-end equipment and demanding operating conditions.

Technical Consulting and Customization

We welcome you to provide drawings or key parameters (module m, number of teeth Z, outer diameter, thickness, material, heat treatment requirements). We can assist in optimizing the structure and manufacturing plan to achieve the best balance between performance and cost.
