Custom m0.2–m1.0 Fine Pitch Micro Gears for Compact Precision Transmission Systems
MH manufactures custom fine pitch micro gears, also known as small-module micro gears, based on customer drawings, samples, 3D models and technical specifications. MH supports fine pitch micro gear manufacturing across a typical module range of m0.2 to m1.0, depending on gear structure, material, heat treatment, accuracy requirement and inspection method.
Representative drawing-based examples include m0.2, m0.3 and m0.5 micro gears for robot actuators, humanoid robot hand mechanisms, aerospace instruments, medical devices, precision motors and compact industrial automation systems. Other modules within the m0.2–m1.0 range can be reviewed according to customer drawings.
Send Drawing for Review
What Are Fine Pitch Micro Gears?
Fine pitch micro gears are miniature gears with very small tooth spacing. In metric gear design, they are often described by small module values. For MH's custom micro gear projects, the commonly reviewed fine pitch range is m0.2–m1.0, with representative examples including m0.2, m0.3 and m0.5 gears.
These gears are commonly used in compact transmission systems where space is limited but motion accuracy, low backlash, stable meshing and mechanical reliability are important.
Compared with larger gears, fine pitch micro gears are more sensitive to burrs, tool wear, heat treatment deformation, runout, pitch error and inspection method. MH reviews each customer drawing before quotation to evaluate manufacturability, material selection, heat treatment risk, tolerance control and inspection requirements.

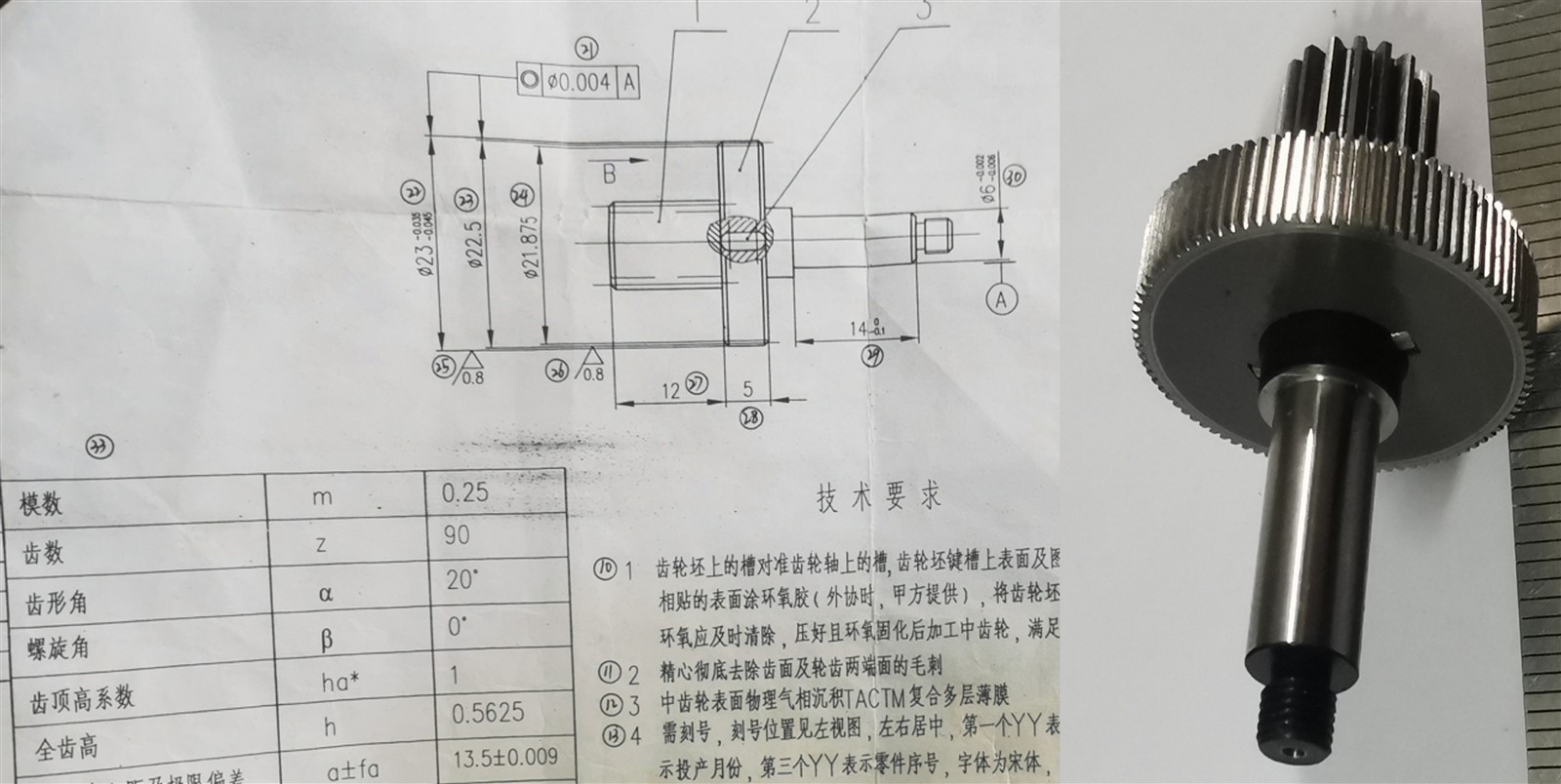

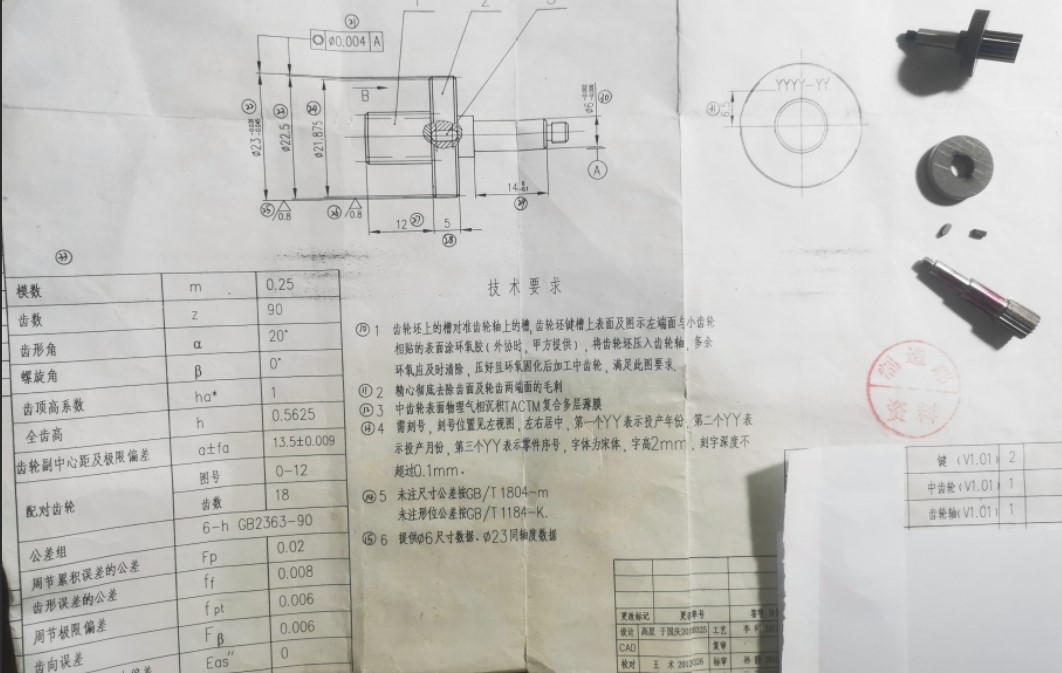

Close-up of fine pitch micro gear teeth and small-module gear drawing details
Fine Pitch Micro Gear Types by Module Range
M0.2–M0.3 Fine Pitch Micro Gears
M0.2–m0.3 fine pitch micro gears are suitable for extremely compact transmission systems, such as humanoid robot fingers, compact actuator modules, miniature gearboxes and precision instruments. Manufacturing focuses on tooth burr control, small tooth profile stability, heat treatment distortion and accurate inspection of fine gear features.
M0.2 Fine Pitch Micro GearsM0.4–M0.6 Fine Pitch Micro Gears
M0.4–m0.6 fine pitch micro gears are often used when the design requires a balance between compact gear size and stronger tooth geometry. This range is suitable for robot actuators, compact gear trains, precision instruments, small motors and industrial automation mechanisms.

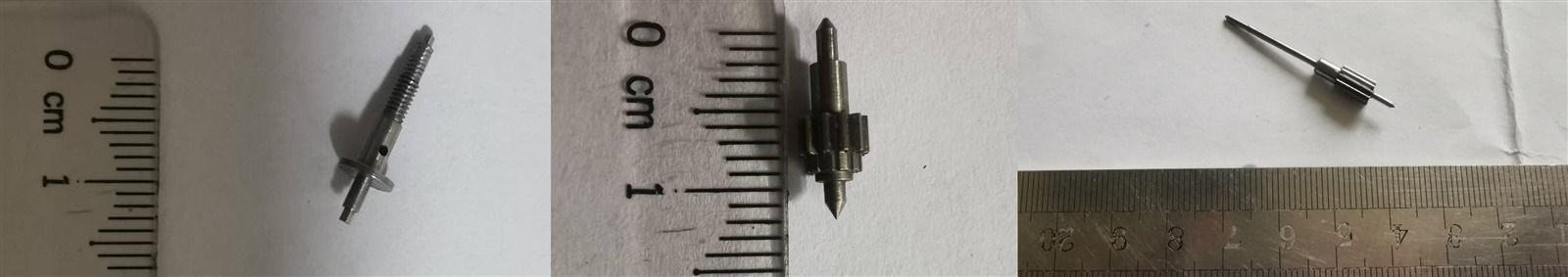

M0.5 Fine Pitch Micro GearsM0.7–M1.0 Fine Pitch Precision Gears
M0.7–m1.0 gears are still compact precision gears, but they may provide higher tooth strength and more design flexibility than ultra-small module gears. They can be used in precision instruments, aerospace mechanisms, compact industrial transmission systems and custom gear assemblies.
View Micro Spur GearsDIN 5–6 Fine Pitch Micro Gears
For applications requiring higher motion accuracy and better repeatability, fine pitch micro gears may require DIN 5–6 level precision depending on gear structure, material, heat treatment and inspection method. MH evaluates gear accuracy requirements during drawing review and recommends suitable manufacturing and inspection planning.
View DIN 5–8 Precision Gears
Fine Pitch Micro Gear Manufacturing Capability
| Item | MH Capability / Custom Option |
|---|---|
| Product type | Fine pitch micro gears / small-module micro gears |
| Typical module range | m0.2–m1.0, subject to drawing review |
| Representative module examples | m0.2, m0.3, m0.5 based on available drawing examples |
| Gear structures | Micro spur gears, micro pinion shafts, micro gear shafts, compound micro gears, gear sets |
| Representative tooth count examples | z10, z16, z18, z25, z32, z38, z52, z56 based on drawing examples |
| Precision capability | DIN 5–8 depending on drawing, material, structure, heat treatment and inspection method |
| Material examples | 20MnCr5, alloy steel, stainless steel, brass, aluminum alloy or customer-specified material |
| Heat treatment | HRC60 examples available according to drawing; final process follows customer requirements |
| Production mode | Prototype, small batch and batch production |
| Manufacturing basis | 2D drawing, 3D model, sample or technical specification |
| Inspection focus | Tooth accuracy, pitch error, runout, concentricity, hardness, surface roughness, key dimensions |
Manufacturing Challenges of Fine Pitch Micro Gears
Fine pitch micro gears are difficult to manufacture because the gear teeth are small and even minor process variation can affect gear performance. For compact transmission systems, the main manufacturing challenge is not only producing small teeth, but also ensuring stable meshing, low noise, low backlash and repeatable assembly.
For ultra-small modules such as m0.2 and m0.3, burr control, tooth profile stability and inspection difficulty are especially important. For medium fine pitch modules such as m0.5 to m1.0, the focus may shift more toward tooth accuracy, heat treatment stability, shaft or bore fit, runout, and batch consistency.
MH focuses on the following key points:
- Tooth burr control after machining
- Tool wear and tooth profile stability
- Pitch accuracy and cumulative pitch error
- Bore or shaft concentricity
- Gear runout and reference surface control
- Heat treatment deformation control
- Surface finish and edge condition
- Inspection method selection for small tooth features
- Batch consistency for actuator and gearbox assembly
Applications of Fine Pitch Micro Gears
Fine Pitch Micro Gears for Robot Actuators
Fine pitch micro gears are widely used in robot actuators where compact size, low backlash, smooth transmission and batch consistency are important. For humanoid robot hands and small joint actuators, m0.2–m0.5 gears can help achieve compact multi-stage transmission designs, while larger fine pitch modules up to m1.0 may be reviewed for higher load requirements.
View ApplicationFine Pitch Micro Gears for Aerospace Instruments
Aerospace instruments and high-reliability precision mechanisms often require small, stable and traceable gear components. Fine pitch micro gears used in such systems require careful drawing review, material control, heat treatment planning and inspection documentation.
View ApplicationFine Pitch Micro Gears for Precision Motors
Precision motors and miniature drive systems may require fine pitch gear components to transmit motion within limited space. Key requirements usually include smooth meshing, low vibration, stable tooth geometry and repeatable batch production.
View Application
Information Required for Quotation
For fine pitch micro gear manufacturing review, please provide:
- 2D drawing or 3D model
- Gear module within the required range, such as m0.2–m1.0
- Number of teeth
- Pressure angle and helix angle, if applicable
- Material and heat treatment requirement
- Precision grade or inspection standard
- Bore diameter, shaft diameter and face width
- Key tolerances and reference surfaces
- Surface treatment requirement
- Sample quantity and batch quantity
- Application background
- Inspection or documentation requirements
FAQ
What is the module range for MH fine pitch micro gears?
MH can review custom fine pitch micro gears from m0.2 to m1.0 based on customer drawings. Representative drawing examples include m0.2, m0.3 and m0.5 gears.
What is a fine pitch micro gear?
A fine pitch micro gear is a miniature gear with very small tooth spacing. In metric gear design, these are often described by small module values.
Is a fine pitch gear the same as a small-module gear?
In many cases, yes. "Fine pitch gear" is a common English expression for gears with very small tooth spacing, while "small-module gear" is a metric engineering expression based on module values.
Can MH manufacture m0.2 fine pitch micro gears?
Representative drawing examples include m0.2 fine pitch micro gear cases. Final manufacturability depends on drawing structure, material, heat treatment, tolerance and inspection requirements.
Can MH manufacture m1.0 fine pitch precision gears?
MH can review m1.0 compact precision gear drawings according to structure, material, tolerance and inspection requirements. Final manufacturability requires drawing review.
Can MH manufacture fine pitch micro gears from samples?
MH can start technical review from samples or photos, but formal manufacturing usually requires drawing confirmation, reverse engineering data or customer-approved technical specifications.
What industries use fine pitch micro gears?
Fine pitch micro gears are used in robot actuators, humanoid robot hands, aerospace instruments, medical devices, precision motors, compact gearboxes and industrial automation systems.
Need Custom Fine Pitch Micro Gears?
Send MH your 2D drawing, 3D model, sample photo or technical requirements. MH will review module, tooth count, material, heat treatment, accuracy grade, inspection requirements and application background before quotation.
